Introduction

Breast cancer is one of the most common cancers worldwide. An important surgical modality for women with early-stage breast cancer is breast-conserving surgery (BCS). BCS entails removal of the cancer and sparing of the rest of the breast, balancing oncologic resection, and providing an ideal cosmesis. In recent years, more patients are diagnosed with smaller invasive tumors and are therefore likely to receive BCS. The use of neoadjuvant chemotherapy results in tumor downstaging, which leads to more patients undergoing BCS. Achieving a negative margin is critical in BCS, as a positive margin is one of the most significant risk factors for local recurrence. A positive margin occurs in 20–40% of all patients and 15–30% patients undergo reoperation to improve local control1,2,3,4. Reoperation is associated with a higher surgical risk, poorer cosmetic outcome, and increased psychological and economic burden5.

Histopathology is the gold standard for margin assessment. However, the analysis is performed post-operatively. Intraoperative margin assessment methods have been developed to identify positive margins and to enable immediate re-excision, thereby decreasing the reoperation rate. These methods mainly consist of two types, pathological methods, and imaging methods. Intraoperative pathological assessment methods, such as frozen section and imprint cytology, are time-consuming6. Intraoperative imaging methods have emerged aiming at real-time intraoperative management7.

Specimen mammography is usually used to confirm the excision of the targeted lesion. It is also an intraoperative resection margin assessment method performed during BCS. Two kinds of systems mainly exist in performing specimen mammography, that is, conventional specimen radiography (CSR) and intraoperative digital specimen mammography (IDSM). CSR is a widely used system in which the specimen is transported from the operating room to the radiology department for specimen radiography. CSR also requires compression of the surgical specimen between mammography plates which may impair its diagnostic accuracy8. Another system, IDSM, is developed by using a small automatic device placed near the operation room to take images, which helps to save operation time. Specimen compression is not needed in IDSM. Multiple views can be obtained and specimens can be placed with the proper orientations, as IDSM is often performed by the operating surgeon. IDSM may have some potential advantages, such as less anesthesia, less cost, predictable operating room schedule, reduced re-excision rate, and less tissue excised9,10,11.

Specimen mammography is widely used to assess margin status intraoperatively. However, its diagnostic accuracy remains controversial. Some studies have shown that specimen mammography was reliable in identifying clear margins and reduced the rate of reintervention12, while others have indicated it to be not accurate enough13,14. We performed this meta-analysis aiming at evaluating pooled diagnostic accuracy for specimen mammography in assessing margin status during BCS.

Methods

Our study was conducted following guidelines of the “Preferred Reporting Items for Systematic Reviews and Meta-Analyses” (PRISMA)15. We searched relevant studies in Pubmed, Cochrane Library, Web of Science, and EMBASE prior to Jun 2022. The search strategy comprised both keywords and MeSH terms for “breast cancer” (MeSH term of Breast Neoplasms, breast cancer*, breast tumour*, breast tumor*, breast neoplasm*, Breast carcinoma*, mammary cancer*, mammary tumour*, mammary tumor*, Mammary Neoplasm*, mammary carcinoma*), “specimen mammography” ((mammograph* OR radiograph* OR X-ray) AND specimen*) and “margin*.” All types of articles were included. Extensive crosschecking of the references in retrieved articles was performed. Two investigators (Chen Lin and Kaiyue Wang) screened the titles and abstracts independently. All relevant citations were selected for further analysis. When a disagreement between two investigators regarding article inclusion surfaces, they discussed these articles with a senior author (Tao Pan). All three authors are surgeons.

Studies were included when they met the following criteria: (1) patients were diagnosed with breast cancer (invasive or in situ) and received BCS; (2) specimen mammography was performed intraoperatively to assess the margin status; (3) studies provided available data of true positive (TP), true negative (TN), false positive (FP), and false negative (FN). Studies not written in English were excluded. Opinions, case studies, reviews, conference abstracts, and meta-analyses were also excluded. Full-texts of the eligible studies were reviewed. The following information was extracted: (1) the first author; (2) year of publication; (3) number of patients; (4) number of lesions; (5)study design; (6) mean age of patients; (7) histopathological definition of positive margin distances; (8) positive margin rates; (9) mammography system used in the article; (10) diagnostic accuracy raw data- TP, TN, FP, and FN; and (11) percentages of sensitivity, specificity, positive predictive value, and negative predictive value.

Quality Assessment of Diagnosis Accuracy Study (QUADAS-2) form was used to assess methodological quality of the eligible studies16. QUADAS-2 checklist was independently completed by the two investigators (Hailang Chen and Yuhua Xu).

The relationship between sensitivity and specificity was assessed using a hierarchical summary receiver operating characteristic (SROC) model. The area under the curve (AUC) of the SROC was calculated to measure the diagnostic performance of specimen mammography. An AUC between 0.9 and 1.0 was considered a very good degree of diagnostic accuracy, between 0.7 and 0.9 represents a moderate degree and an AUC close to 0.5 AUC implies a poor degree17. The Youden index (*Q), which is used in conjunction with SROC analysis and recognized as a preferred statistic to reflect the diagnostic value, was also assessed. A *Q index of 1 indicates a perfect test result. Heterogeneity was assessed using I2. 25–49% was considered low level, 50–74% was moderate, and > 75% was high. A random effects model was used when I2 > 50%, and a fixed effects model was chosen when I2 < 50%18. The threshold effect was one of the important sources of heterogeneity in diagnostic accuracy tests. The Spearman correlation coefficients can determine the existence of the threshold effect if the p-value ≤ 0.05. Publication bias was analyzed using Deeks’ funnel plot. The absence of a non-zero slope coefficient (P < 0.10) indicates that a publication bias exists among the included studies19. A subgroup analysis was performed. Statistical software package Revman 5.3 and Stata version 16.0 (StataCorp, College Station, Texas) were used.

Results

Search results and study selection

The systematic search and manual crosschecking of references yielded 1255 articles from PubMed, Web of Science, Embase, and Cochrane initially. After duplicates were removed, 750 unique records remained. After excluding the obviously unrelated articles by reading the titles and abstracts, 93 remained as potential articles. An additional of 73 articles were excluded after a careful full-text review. The reasons for exclusion were as follows: (1) TP, TN, FP, and FN data were missing; (2) the paper did not focus on specimen mammography for margin assessment; (3) the paper was published in abstract format only; (4) the paper was a literature review; and /or (5) the paper was not written in English. Eventually, 20 studies were enrolled in the analysis12,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38.

Study description

Our meta-analysis included 20 studies which consisted of a total of 1967 patients and 1988 lesions (Fig. 1) . The sample size ranged from 34 to 267 patients and 34 to 280 lesions. The mean or median age was available in 12 studies with a range between 50 and 60 years old. Sixteen studies mentioned the system used to take specimen mammograph. Eleven of the studies used the CSR system, three used the IDSM system and two used both systems for margin status assessment in BCS. Four studies did not provide information about the applied system. In seven studies, radiologists were blinded to the pathological results. The basic information and principal characteristics of the included studies including the number of patients and lesions, method of studies, mean age of patients, negative margin distance, positive margin rates, and mammography system are detailed in Table 1. Documented or calculable percentages of sensitivity, specificity, positive predictive value, and negative predictive value for each study are listed in Table 2. According to QUADAS-2 items, the quality assessment of 20 studies was moderate. The results of the distribution are shown in Supplementary Fig. S1.

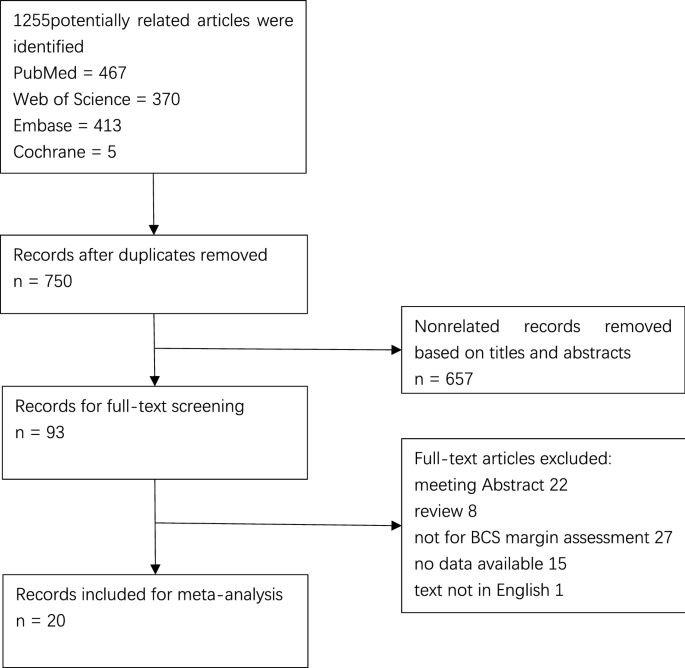

Figure 1
figure 1

Flowchart illustrating the selection of the studies.

Table 1 Principal characteristics of the included studies.
Table 2 Included studies containing raw diagnostic accuracy data for meta-analysis.

Meta-analysis

The statistical results confirmed a moderate and high heterogeneity of specimen radiography for sensitivity (I2 = 65.48%) and specificity (I2 = 93.05%), respectively. A random effects coefficient binary regression model was used. The pooled estimate of 20 studies demonstrated a sensitivity of 0.55 (95% CI, 0.47–0.63), a specificity of 0.85 (95% CI, 0.78–0.90) (see Supplementary Fig. S2), and a diagnostic odds ratio of 7 (95% CI, 4–12). The pooled positive likelihood ratio was 3.7 (95% CI 2.6–5.5) and the pooled negative likelihood ratio was 0.52 (95% CI 0.44–0.62). The AUC value, which represented the overall diagnostic accuracy of specimen radiography, was 0.75 (95% CI 0.71–0.78). The *Q index was 0.6929 ± 0.0380. The SROC graph with the 95% confidence region and 95% prediction region is shown in Supplementary Fig. S3.

The Spearman correlation coefficients’ p values (0.779, p > 0.05) disclosed the absence of a threshold effect. Deeks’ funnel plot asymmetry test was performed and no significant publication bias (p = 0.26) existed in the enrolled studies (see Supplementary Fig. S4).

The results of the subgroup analysis were presented in Table 3 and Supplementary Fig. S5. BCS had been performed for decades. In the early period, there was no consensus on what constitutes an optimal negative margin width39. The various definitions of negative margin included "no tumor cells on the ink", no tumor cells seen at < 1 mm, < 2 mm, and larger distances (> 5 mm)40. The negative margin distances varied among the included studies. The studies were divided into two subgroups. All studies with a negative margin distance of 0 mm were included in the no tumor at margin subgroup. The remaining studies were included in the other negative margin definition subgroup. The subgroups had comparable pooled sensitivity (0,58 [95% CI: 0.45, 0.71] vs. 0.53 [95% CI: 0.43, 0.64], p = 0.95), but the pooled specificity was significantly lower in the no tumor at margin subgroup (0.82 [95% CI: 0.71, 0.92] vs. 0.87 [95% CI: 0.80, 0.94], p = 0.01).

Table 3 Univariable meta-regression and subgroup analysis.

Discussion

Histopathological results of the margin status occupy a particularly important place in BCS. The application of an accurate intraoperative diagnostic method can reduce the reoperation rate. In recent years, numerous studies have compared the ability of techniques in detecting positive margins to the final histopathological results. Assessing the diagnostic accuracy of intraoperative methods is necessary.

Intraoperative pathological and imaging methods are the two main methods for intraoperative margin assessment in BCS41. Intraoperative pathological methods mainly include frozen section, touch smear, and imprint cytology, which all have high sensitivity, specificity, and accuracy42. Despite the high level of accuracy, intraoperative pathological techniques are infrequently employed and depend heavily on the pathologists’ experience. Pathological methods are also time-consuming. They often add an average of 20–30 additional min to the operation time6. Intraoperative imaging methods can quickly assess margin status and reduce operation time. Specimen mammography is one of the most widely used intraoperative imaging methods. Various studies are available in the literature to evaluate the value of specimen mammography in margin status assessment. The findings of our meta-analysis indicated that the diagnostic accuracy of specimen mammography was promising, with an AUC of 0.75, despite some limitations.

There was moderate and high heterogeneity for sensitivity and specificity, respectively, in our meta-analysis. The heterogeneity among studies may be attributed to factors, such as study design, type of specimen mammography system, and different definitions of negative margin. Two types of systems mainly exist which are used to take specimen mammography, namely, CSR and IDSM. A two-dimensional CSR is a technique used routinely in many cancer institutions. The device used for performing CSR is usually is the same one used for patients’ mammography. The device is often located in a radiology unit. Surgical specimen needs to be transported from the operating room to the radiology department, which makes it labor-intensive and time-consuming. The disadvantages of CSR also include low specificity, as additional excision of the tissue is often recommended unnecessarily43. Specimens examined with CSR are often compressed with a plate, to simulate the conditions of the mammographic examinations22. Kyle Ota believed that the high false positive rate may be caused by “pancake phenomenon43”, where CSR compresses the surgical specimen. This manipulation refers to a reduction in the mean volume and height of the breast specimens which may increase FP margins8. The other widely used system is IDSM. It is a portable, dedicated, self-contained digital imaging system, often placed near the operation room. Without transporting the specimen to the radiology department, IDSM shortens the specimen transport time. IDSM results can be read by the surgeon near the operation room. Real-time review shortens the time required for radiologist review. When the radiologist is not immediately available, the surgeon can review images and make decisions. However, it acquires additional skills in learning image interpretation. The IDSM system significantly reduced the operative time for BCS compared to CSR26, which in turn decreased anesthesia time and operation room cost. Aside from the reduced time, some studies have found a reduction in the reoperation rates after the introduction of IDSM12,22. However, in our study, no significant difference was observed between subgroups of CSR and IDSM. Further assessment requires large-scale and well-designed clinical trials.

Different definitions of negative margin may also lead to heterogeneity among studies. Before 2014, controversy exists regarding the optimal margin width in BCS for breast cancer40. The American Society of Clinical Oncology guidelines suggested that tumor margins not touching ink at the specimen edge were acceptable for both invasive cancer and ductal carcinoma in situ44,45. However, a recent study indicated that close margins less than 2 mm were associated with increased local and distant recurrence as well as lower overall survival, compared with wide margins46. Researches are still undergoing to explore an optimum margin width, in order to pursuing lower recurrence rate and better cosmetic outcome. Different margin widths exist among countries and institutions using different guidelines. Among the included studies, a negative margin width differs from no tumor at the margin to no tumor within 5 mm from the margin40. A wider negative margin distance defines those cases with close margins as pathologically positive. “Pancake phenomenon” causes the reduction in mean volume and height of the breast specimens, which also tends to define close margin cases as radiological positive43, leading to better diagnostic accuracy in the wider negative margin subgroup. Our study showed a significant difference in specificity between the two subgroups with higher specificity in the group with wider negative margins.

Besides the factors mentioned above, there might be other factors affecting the diagnostic accuracy of specimen mammography. Goldfeder found that concordance between specimen radiography and histopathology was higher in one-view specimen mammography in comparison to two-view32. Mammographs of specimens were more effective in evaluating the surgical margins of mammographic lesions with microcalcifications than other manifestations47. In some subtypes of breast cancer such as medullary carcinoma, the positive margin signs on specimen mammograph might not represent actual tumor but only a nonneoplastic infiltrate of lymphocytes48.

Other important limitations of intraoperative specimen mammography are: (1) specimen mammography is a two-dimensional imaging method which is inherently flawed in depicting three-dimensional specimens comprehensively41; (2) because of the poor soft tissue contrast, the difficulty in determining the margin status using specimen mammography increases with the breast density49.

Emerging techniques have been developed to improve those limitations. Vacuum intraoperative specimen mammography has been applied to increase the precision of margin detection by decreasing compression, as specimen compression may affect the evaluation of tumor borders50. Three-dimensional imaging techniques, such as digital breast tomosynthesis and micro-computed tomography, have been introduced to solve the dilemma essentially23,51,52. Our meta-analysis data demonstrated a sensitivity and specificity of 0.55 (95% CI, 0.47–0.63) and 0.85 (95% CI, 0.78–0.90), respectively. With a relatively low sensitivity, specimen mammography is less accurate than pathological methods. However, despite those limitations, intraoperative specimen mammography is a widely used and cost-effective procedure for margin assessment. It also helps to reduce the operation time. Specimen mammography can aid in the intraoperative assessment of margin status. Overall, with an AUC value of 0.75, our findings indicated intraoperative specimen mammography to be accurate in assessing margin status during BCS.
